PENTAX Loupes
See every detail
Keep your posture
Precision loupes built on deflection prism optics, so you work looking straight ahead instead of bent over the field. Fitted to you in the UK.
See every detail
01 · Optics
Japanese optics, sharp to the edge
A clear, distortion-free image with a wide field of view and strong depth perception. The barrels flip up out of your sightline whenever you need normal vision.
02 · Magnification
Choose your magnification
2.5×
141 mm field of view
For those who favour field of view and depth of vision: general surgeons, urologists and hygienists.
Each pair is built to one fixed magnification. Your specialist will help you choose at a fitting.
*These are estimates, results per person may vary.
03 · Posture
Look straight ahead, not down
Deflection prisms redirect the optical path, much like working with a microscope. Your eyes stay level, helping you hold a natural, upright posture through long procedures.
04 · Fit
Adjusted to you, down to the millimetre
Pupillary distance, working distance, height and angle are all adjustable. They are set at your fitting and can be reset whenever your eyesight or setup changes.
52–78 mm pupillary distance25–70 cm working distance
How it works
Fitted in weeks, not months
Four steps from the first call to wearing them. Your measurements are taken on your own phone, so nothing waits on diaries, showrooms or travel.
-
Speak to a loupes specialist
A short call about the work you do, the magnification that suits it and the way you sit or stand at work. No showroom visit and no obligation.
Day one -
Take your measurements in the app
Working distance and pupillary distance, measured on your own phone in a few minutes, and a specialist checks them before anything is made.
Open the measure app Same day -
We build your pair
Your numbers go to the workshop and the loupes are made to them: magnification, working distance, pupillary distance, colour and lens options.
Under 2 weeks -
Wear them
They arrive ready to use with your passport in the case. If anything needs adjusting after a week of real work, we put it right.
Delivered
With us Same week to 2 weeks
Commonly elsewhere 3–6 months
Some pairs go out in the same week, and two weeks is the outside. That is the sort of wait you already plan around for lab work.
Technology
Why PENTAX
Four things the optical design does differently from conventional loupes.
01
Balance point
A lightweight frame with balanced weight distribution, so the loupes sit evenly and stay comfortable through long procedures rather than dragging on your nose.
02
A wide field of view
Japanese optics give a sharp, distortion-free image across a wide field, with the depth perception fine work needs. At 2.5× the field of view is 141 mm.
03
Parallel viewing
Conventional loupes converge your eyes toward a single close point. PENTAX Loupes are built for parallel viewing instead, designed to reduce eye convergence and help support an upright working posture.
04
Flip up, flip down
Flip the barrels out of the way to switch instantly between magnified and normal vision, without taking the frame off.
Fit
Built around you
Every measurement that matters is adjustable. Set once at your fitting, then revisited as your eyesight or working posture changes.
25–70 cm
Working distance
Set to match your height, your chair and the way you sit or stand at work.
Adjustable
Height & angle
Position the barrels for a natural line of sight, then lock them in.
52–78 mm
Pupillary distance
Matched to your own eyes, not a factory average.

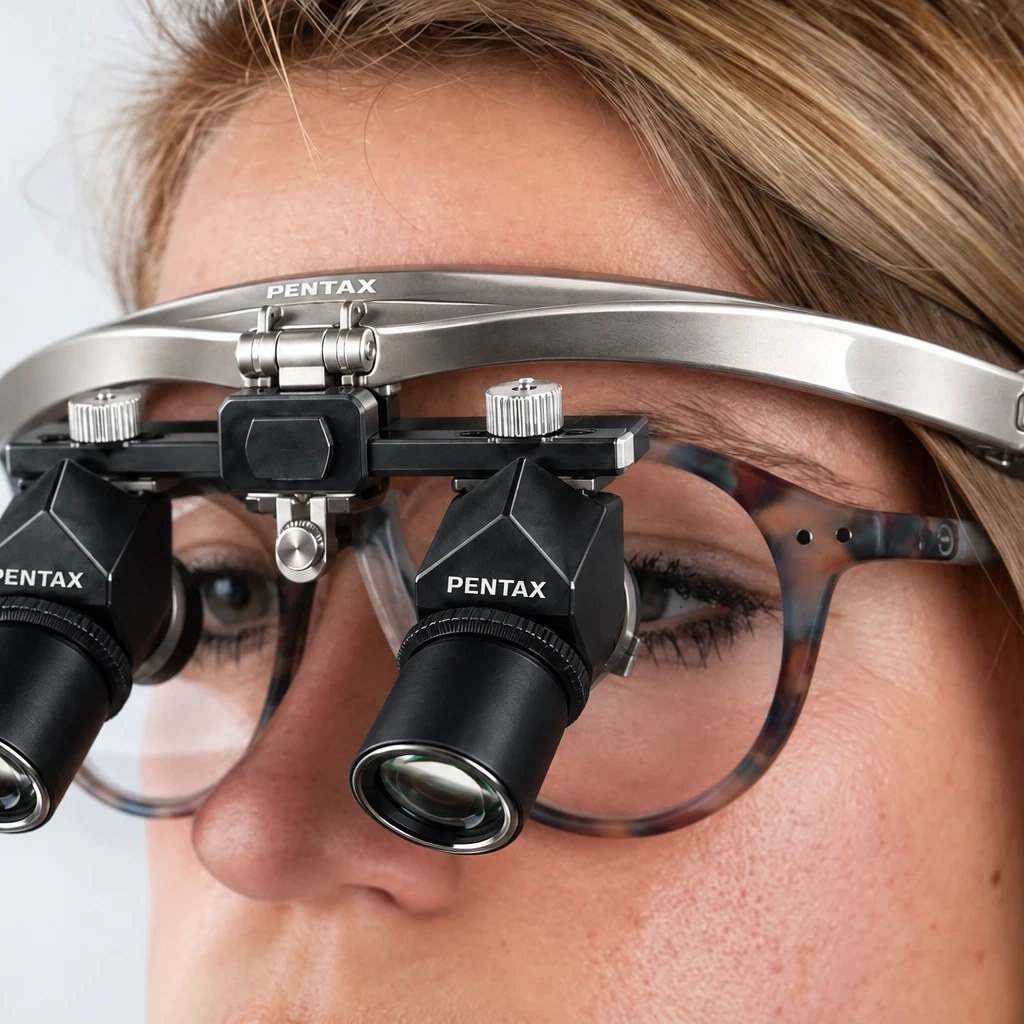

Wear your glasses underneath, fit a prescription insert, or use the frame on its own.
Prescription & lens options
Made for your eyes
Magnification is fixed and does not correct your everyday vision. There are three ways to pair PENTAX Loupes with your prescription.
Magnification
Magnification range
Five fixed magnifications, each with its own field of view. Magnification is set when the loupes are built and does not change.
2.5×
141 mm field of view
For those who favour field of view and depth of vision: general surgeons, urologists and hygienists.
*These are estimates, results per person may vary.
2.5×
Sample view photo coming soon
Field of view
Magnification
Slide towards what matters most to you and we'll recommend a magnification.
| Magnification | Field of view | Guidance |
|---|---|---|
| 2.5× | 141 mm | For those who favour field of view and depth of vision: general surgeons, urologists and hygienists. |
| 3.0× | 120 mm | For general dentists and ENT surgeons. |
| 3.5× | 106 mm | For anyone who wants a good middle ground between field of view and magnification. |
| 4.0× | 98 mm | For those who need good attention to detail while maintaining a decent field of view. |
| 5.0× | 80 mm | For those working on very small, fine details, such as endodontics or microsurgery. |
Working distance25–70 cm
Pupillary distance52–78 mm
Protective lensOptional

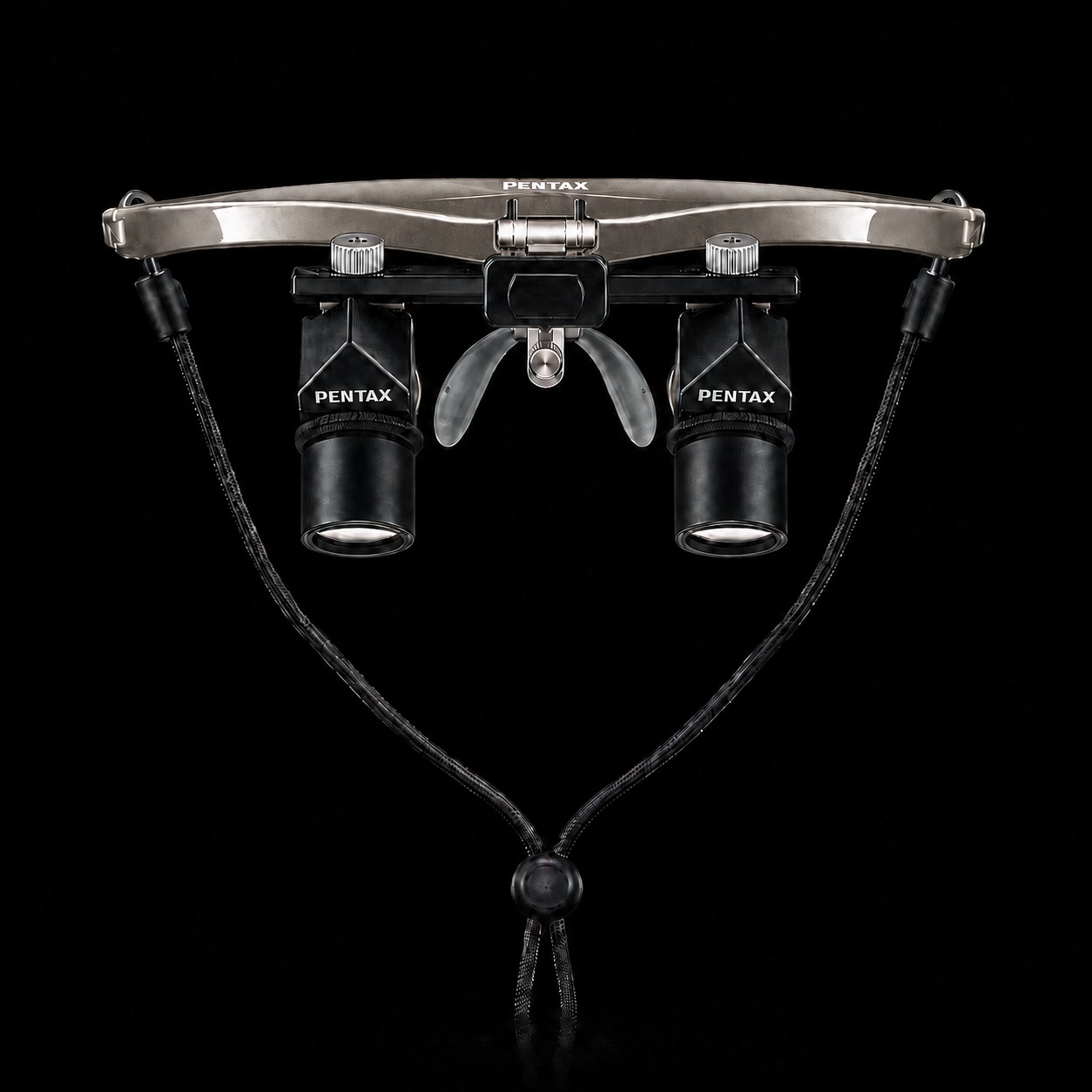

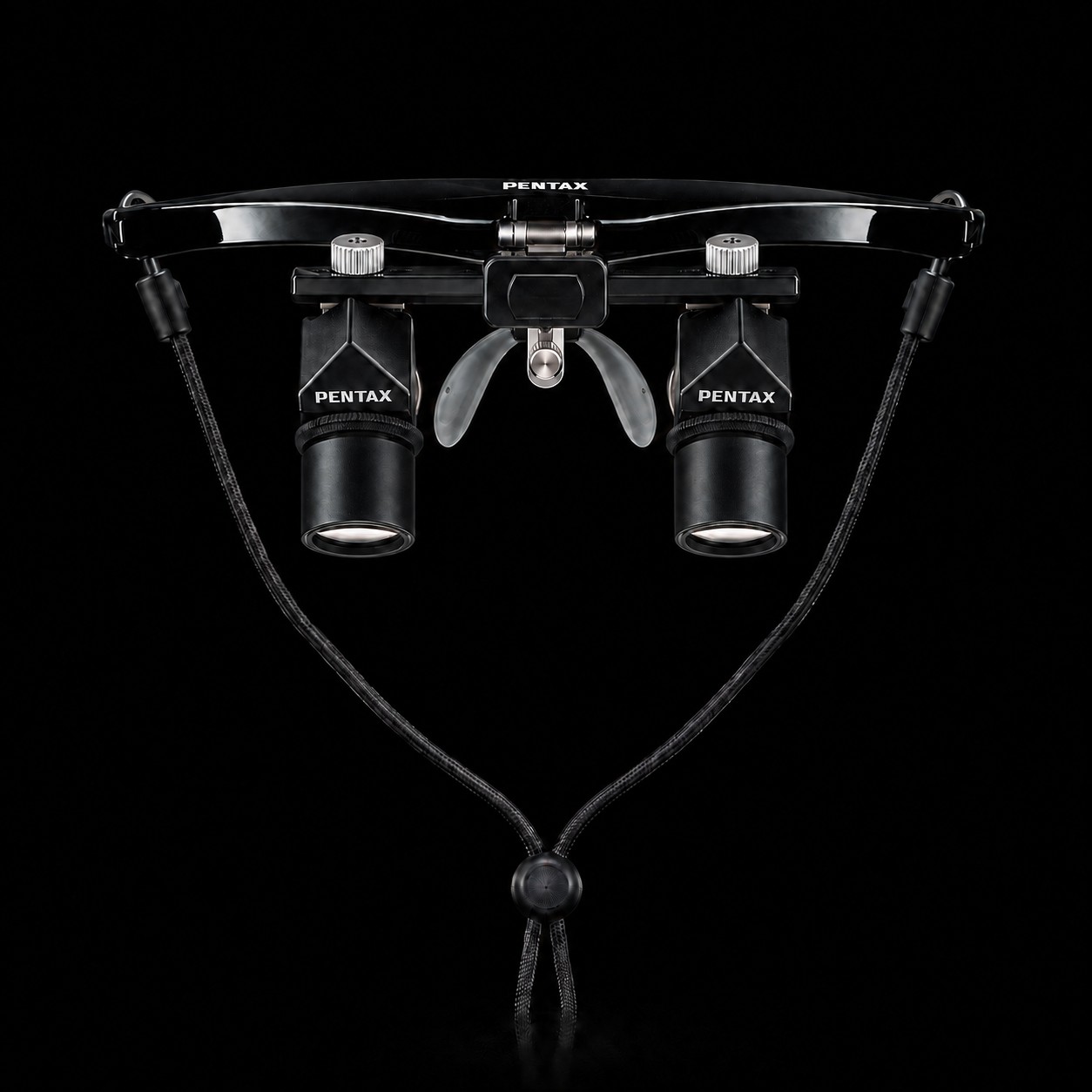

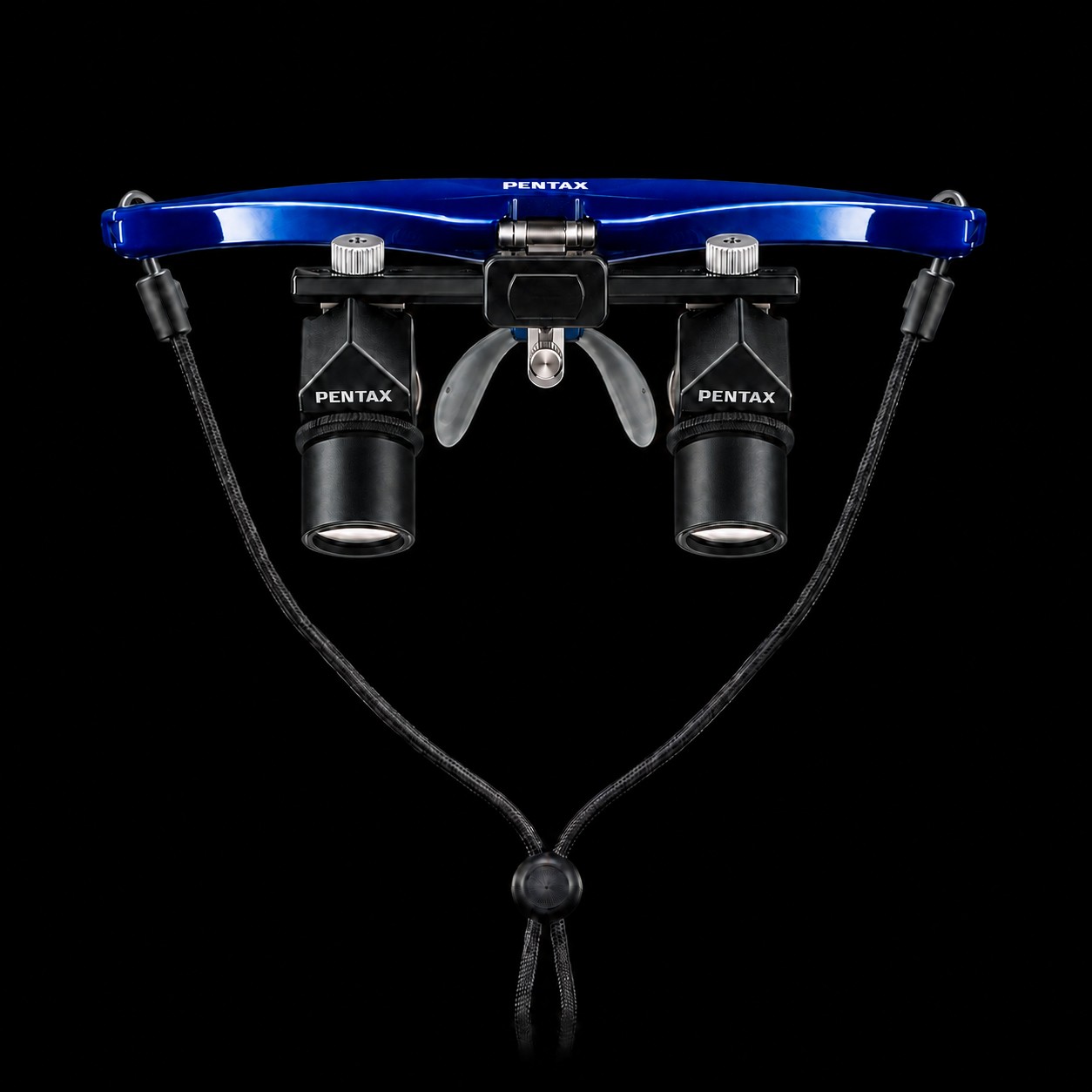

ColoursSilvergold, Blue, Black, Red
Not sure which magnification suits your work? Talk to a loupe specialist →
Illumination
Light exactly where you are looking

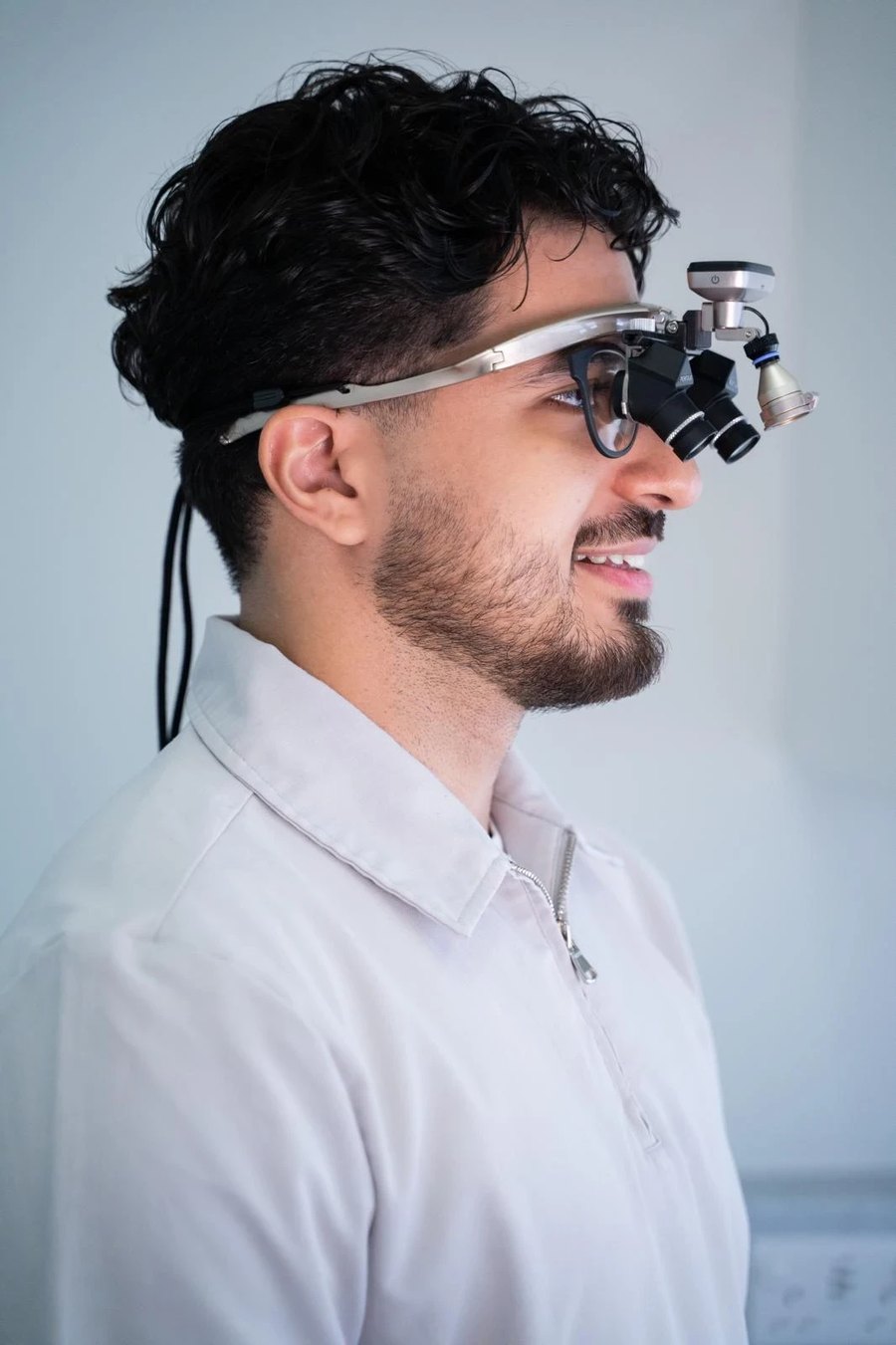

An optional LED headlight clips to the loupes and lights the field from your own line of sight, so the thing you are working on is lit rather than shadowed by your head and hands.
Built for close work

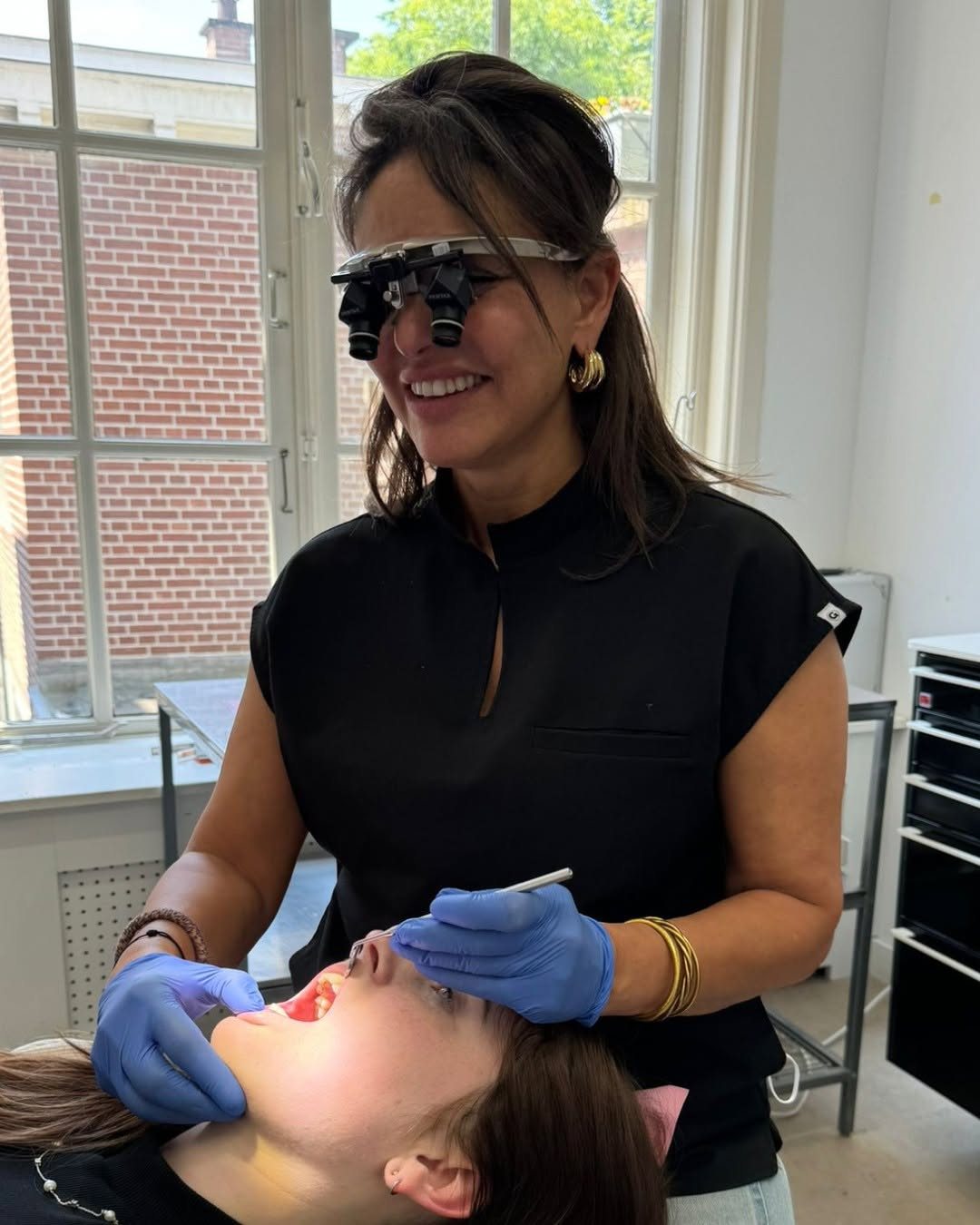

Dentistry
Photo coming soon
Dentistry
2.5×–3.5×Restorative and hygiene work at 2.5× to 3.5×. Aesthetic dentists often go to 5.0×.

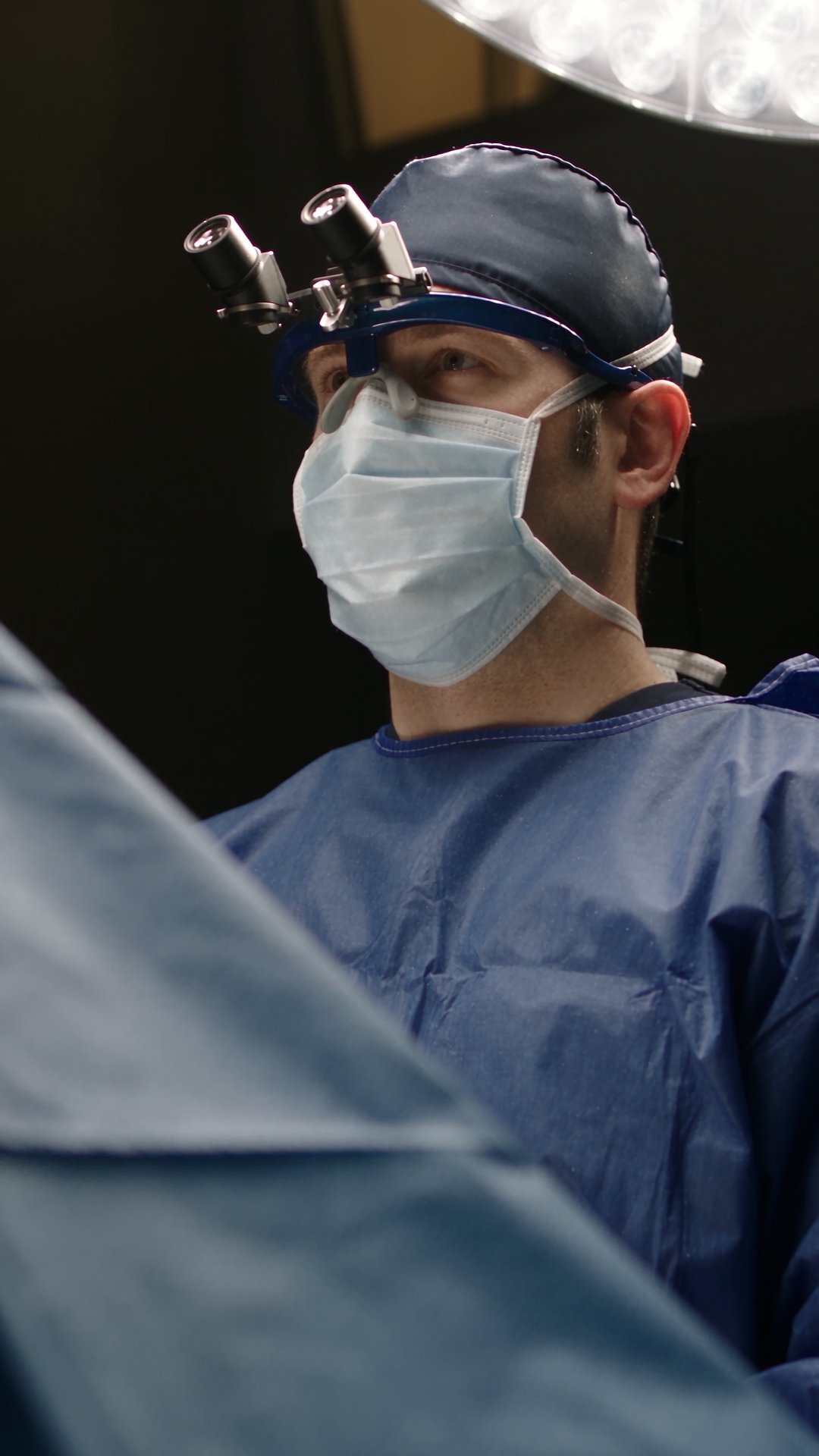

Surgery
Photo coming soon
Surgery
3.5×–5.0×Fine, delicate procedures at 3.5× and above, across surgical specialities.
Veterinary
Photo coming soon
Veterinary
2.5×–3.5×General and referral practice, depending on procedure and patient size.
Build your loupes
Your loupes, your spec
Five quick choices. A UK specialist prepares your personalised quote; prices come directly from them, not from a list.
Request sent
Thanks. A PENTAX Loupes specialist will be in touch within 24 hours with your personalised quote.
Brochure
Take the details with you
Eight pages on posture, fit and magnification, with the full adjustment ranges and the lens and lighting options. The same information as this site, in a form you can pass to a colleague or your practice manager.
After your fitting
Every pair comes with a passport
A private page and a QR card in the case, holding your setup, your care guidance and a one-tap line to the UK team. It stays yours for as long as you wear them.
-
Issued at your fitting
Magnification, working distance and pupillary distance are recorded as they are set.
-
A card in the case
Scan it with any phone. No app, no account, no password.
-
Open it whenever you need us
A quick check-in, a support request, or an invitation for a colleague to see for themselves.
Ownership, done properly
Why the passport matters
A precision instrument deserves better aftercare than a receipt in a drawer. The passport is how a PENTAX pair stays a PENTAX pair, for you and for whoever wears it next.
Sell on, the proper way
If you ever want to sell your loupes on, the passport is how it's done: the record is transferred to the new owner, who gets their own fitting and the same UK support, and the pair stays a genuine, traceable PENTAX. Sold without it, a pair is just a second-hand pair.
If a pair goes missing
Every passport ties one pair to one owner by reference, dated from the fitting. Report it lost or stolen and we flag that record, so it cannot quietly be transferred or passported to somebody else, and you keep dated proof of exactly what was yours for an insurer or the police. It will not tell you where the pair is, but it does show whose it is.
The manufacturer's warranty, protected
A passported pair is a genuine PENTAX pair supplied through the UK team and covered by the manufacturer's warranty. No grey imports, no guesswork about where it came from. That protects you, and it protects the name on the frame.
Reassurance if something's off
A slipping nose pad, a headlight question, a fitting that needs a tweak: one tap on your passport reaches a real person, with your setup already in front of them.
Your numbers, kept
Magnification, working distance and pupillary distance are recorded at your fitting, so re-fits, adjustments and accessories start from your numbers rather than from scratch.
Care guidance, always at hand
Cleaning, handling and storage guidance for your pair lives on your page, so the optics stay sharp for years and the adjustments made at your fitting stay put.
Something to show your insurer
Magnification, working distance, pupillary distance, colour, lens and lighting options, the fitting date and the reference, all on one page. No hunting back through email when a practice manager or an insurer asks what you actually own.
It follows you, not the practice
Change practice, go locum, or work across several sites and the passport comes with you. Your setup and your line to the UK team belong to you rather than to a building or an employer.
Nothing to install
No app, no account, no password. A card in the case and a link that is yours alone, for as long as you wear them.
The numbers
Precision you can measure
5.0×
Maximum magnification
141mm
Field of view at 2.5×
70cm
Maximum working distance
78mm
Maximum pupillary distance
5 magnifications · 4 colours · wired & wireless LED options
The best way to understand PENTAX Loupes is to wear them.
Request a demo
Request a demonstration
The best way to understand PENTAX Loupes is to wear them
Tell us a little about your work and we'll arrange a fitting and demonstration, or put you directly in touch with a loupe specialist.
Speak to a specialist
Prefer to talk it through first? Email info@pentaxloupes.com.
Reviews
From clinicians who wear them
FAQ
Frequently asked questions
Loupes are small magnifying optical instruments, typically worn as eyeglasses. They give a close-up view of fine detail that's difficult to see with the naked eye, and are widely used for precision work.
Dentists, prosthodontists and dental hygienists, surgeons, hair transplant specialists, permanent makeup artists, veterinary surgeons, and other professionals whose work requires enhanced close-up vision.
Through-the-lens (TTL) loupes are fixed and custom-fitted, with pupillary distance set at the factory. Front-lens-mounted loupes clip in front of separate eyeglasses. PENTAX Loupes are flip-up loupes: pupillary distance and working distance can be adjusted by the user, and the loupes can flip out of the way for regular vision.
No. Magnification is fixed at manufacture, giving a consistent, predictable level of magnification. Pupillary distance and working distance are user-adjustable, which matters because eyesight and working posture change over time.
2.5×, 3.0×, 3.5×, 4.0× and 5.0×, each with a different field of view. See the magnification range section above for the full comparison.
As a general guide: dentists commonly use 2.5×–3.5× (aesthetic dentists often use 5.0×); surgeons typically use 3.5×–5.0× or higher; veterinary surgeons typically use 2.5×–3.5×, depending on procedure and patient size. Individual preference and task complexity also play a part. Speak to a specialist for guidance specific to your work.
Yes. Optional LED lights are available in wired and wireless configurations, attaching to the loupes for additional illumination in low-light conditions. If you already own a compatible LED light, contact us; different brackets are available for different light brands.
There are three options. Many users don't need separate glasses at all, since the loupes are independently adjustable to your vision. Alternatively, the adjustable nose pad can be set to create room to wear your own glasses underneath. A third option is a custom prescription insert clip that fits the PENTAX frame directly, so no separate glasses are required.
Price depends on magnification level and options such as LED lighting or a prescription insert. Build your loupes above or request a demonstration, and our team will prepare a personalised quotation.
Trial availability depends on the specific retailer or distributor. Get in touch and we'll let you know what's possible for a demonstration or fitting.
Magnification, working distance, pupillary distance, frame colour and any lens options are all discussed as part of a fitting. Build your loupes above or request a demonstration and a specialist will guide you through the choices.
Yes. Both are user-adjustable on PENTAX Loupes, so the fit can be revisited as your eyesight or working posture changes, without returning the loupes to the factory.
